Supersize Your Production with the HRC100 Freeze Dryer
Harvest Right's HRC100 Freeze Dryer is a game-changing solution for businesses entering or expanding their freeze-drying operations. This mid-size production unit bridges the gap between small-scale and industrial freeze dryers, offering an affordable entry point into commercial freeze-drying without compromising on quality or capacity.
The HRC100 accommodates standard baking sheet trays and can
process 65-90 pounds of product per batch. This capacity enables you to scale their production efficiently, meeting growing demand with ease.
Designed for exceptional performance and reliability, the HRC100 creates true redundancy in freeze-drying operations, providing businesses with the flexibility they need. Despite its advanced capabilities, the HRC100 remains user-friendly. Simply load your product, press start, and the freeze dryer will alert you with a beep when the process is complete.
Highlights:
- 9 Trays at 18" W x 26" D x 0.9" H each
- 4,270.5 sq inches total shelf area
- 65-90 lbs fresh food capacity per batch
- Premier industrial vacuum pump
- Expert technical support available
- Affordable mid-size production solution
- Based on proven freeze-drying technology
What's Included
- HRC100 Freeze Dryer
- Premier Industrial Vacuum Pump
- Vacuum Pump Oil
- Oil Filter
- Stainless Steel Trays (set of 9)
Harvest Right HRC100 Features

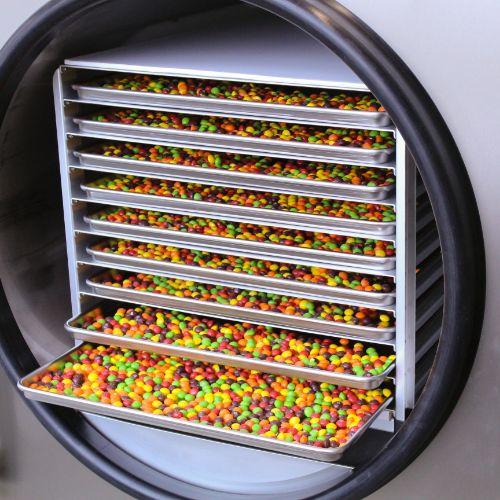

High-Capacity Tray System
The HRC100 boasts nine 18"x26" industrial baking trays, providing a total shelf area of 4,270.5 square inches. This expansive capacity enables the processing of 65-90 pounds of fresh food per batch.

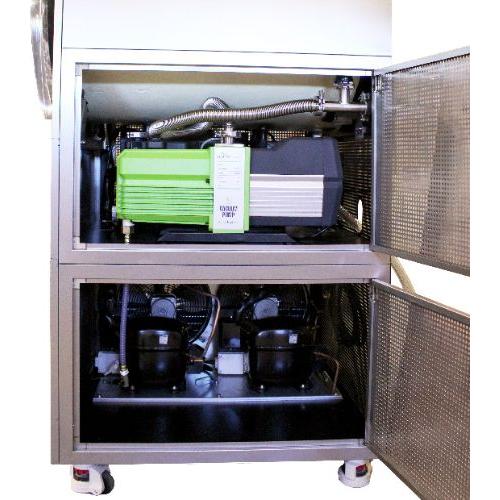

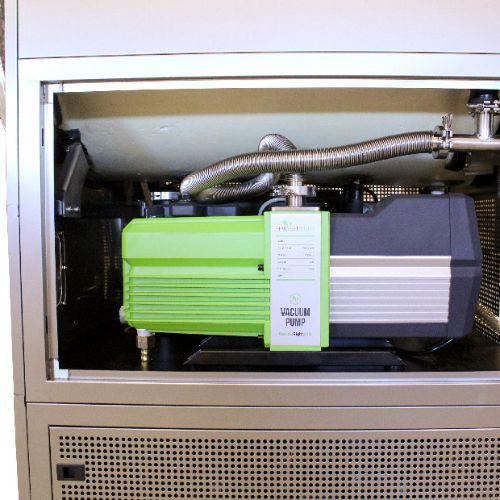

Integrated Vacuum System
The freeze dryer comes equipped with a premier industrial vacuum pump inside the unit, ensuring optimal performance and space efficiency.
Innovative Mid-Size Design
As the only mid-size freeze dryer of its kind in the industry, the HRC100 fills a crucial gap in the market, offering advanced technology at an accessible price point.
Proven Technology
Built on Harvest Right's established expertise, the HRC100 utilizes proven freeze-drying technology, guaranteeing reliable and consistent results.
Power Requirements:
220 volt single phase outlet. A dedicated 30 amp circuit is required.
CE certified breaker: GFCI, overload protection, short circuit protection, isolation, residual current operation.
HRC 100 Freeze Dryer Specifications
| Size |
33.5" W x 37.25" D x 70" H |
| Fresh Food Capacity |
65-90 lbs. per batch |
| Average Yield |
13,500 lbs of fresh food per year |
| Trays |
Nine(9)x 18" W x 26" D x 0.9" H |
| Total Tray Area |
29.25 sq. feet |
| Weight |
985 lbs |
| Power requirements |
220 volt single phase outlet. A dedicated 30 amp circuit
is required. |
Harvest Right HRC100 Commercial Freeze Dryer Manual
Compare Harvest Right Freeze Dryer Models
|
|
|
|
|
|
|
| Trays
|
4 |
5 |
6 |
7 |
9 |
| Fresh food per batch
|
6 - 9 lbs |
10 - 15 lbs |
18 - 23 lbs |
40 - 50 lbs |
65 - 90 lbs |
| Freez dried food per batch
|
1.5 - 2 gal |
2 - 3.5 gal |
4 - 6 gal |
7 gal |
12 gal |
| Dimensions (HxWxD)
|
26.8" x 17.4" x 21.5" |
29" x 19" x 25" |
31.3" x 21.3" x 27.5" |
35.6" x 24.3" x 37.4" |
70" x 37.25" x 18" |
| Weight
|
98 lbs |
127 lbs |
150 lbs |
265 lbs |
985 lbs |
| Electrical requirements
|
Standard 110V |
Standard 110V |
Standard 110V (w/ adapter) |
NEMA 5-20, dedicated 20A circuit required |
NEMA 10-30P, dedicated 30A circuit required |
| Who it's for
|
Individuals or small families with limited freeze-drying needs |
Families or small groups requiring moderate batch sizes |
Large families or groups needing substantial batch capacities |
Small businesses or organizations with high-volume requirements |
Businesses or organizations with industrial-scale production needs |
HRC 100 Warranty
Full One-Year Warranty
Warranty Period: For one year from original ship date (includes the U.S. continental 48 states).Included: Freeze Dryers, Premier oil vacuum pumps, and oil-free vacuum pumps.
Harvest Right will be responsible for: Repair or, at our option, replacement of any part of this freeze dryer and/or vacuum pump which proves to be defective in workmanship or material.
Consumer will be responsible for replacement parts caused by consumer misuse and neglect of product. See Normal Responsibilities of the Consumer below.
Limited Warranty, Years Two and Three
Warranty Period: For years two and three from the original ship date (includes the U.S. continental 48 states).
Included: Compressor, Condenser, and Evaporator.
Harvest Right will be responsible for: Repair or, at our option, replace any part of the sealed refrigeration system (compressor, condenser, evaporator, tubing) which fails because of defective workmanship or material.
Consumer will be responsible for: Diagnostic charges for determining defects, and any costs for transportation and delivery of the appliance required because of service.
Limited Warranty (Alaska, Hawaii, Canada and Puerto Rico)
Time periods listed above.
Included: Freeze Dryers, Premier oil vacuum pumps, and oil-free vacuum pumps.
All provisions of this limited warranty are the same as listed above except that service will be provided by the customer or a qualified local service provider that is approved by Harvest Right. The consumer will be responsible for the cost of transportation of the product to the repair shop or the travel cost of the technician to the consumer’s location.
Consumer will be responsible for: Costs of local service and cost of parts for consumer misuse and neglect of product. Costs for transportation and delivery of freeze dryers, vacuum pumps, and all parts, for any reason, to Harvest Right and to Consumer.
Harvest Right HRC100 Commercial Freeze Dryer FAQs
What makes the HRC100 different from home freeze dryers?
+
The HRC100 is a true commercial unit that bridges the gap between home models and large industrial freeze dryers. It processes 65-90 lbs per batch using nine 18" x 26" industrial baking trays with 4,270.5 square inches of total shelf area - significantly more than the
X-Large model (40-50 lbs) with an impressive annual capacity of 18,000 lbs.
Who should consider the HRC100 for their business?
+
The HRC100 is perfect for businesses entering or expanding commercial freeze-drying operations. It's ideal for established food producers, co-packers, or serious commercial operations that need consistent high-volume processing beyond what home models like the
Large or
Medium models can provide.
Should I buy two X-Large units instead of one HRC100?
+
This depends on your specific needs and budget. Combined, two
X-Large units costs less than one HRC100 while offering higher combined capacity (80-100 lbs total vs 65-90 lbs), plus redundancy and flexibility with separate 20A circuits. The HRC100 provides single-unit simplicity with robust commercial construction but represents a single point of operation. Consider your space, electrical setup, budget, and whether redundancy or simplicity is more important for your operation.
What are the power and installation requirements?
+

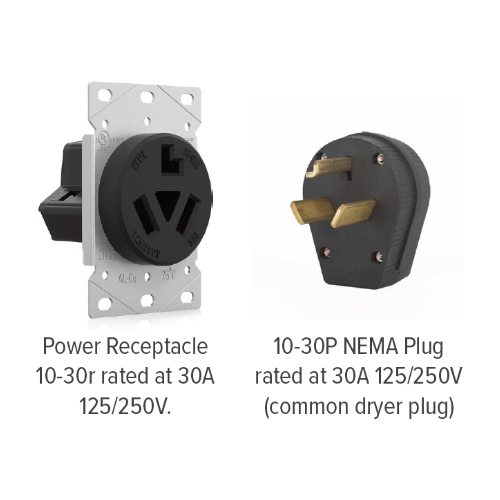

The HRC100 requires a 220V single-phase outlet with a dedicated 30A circuit and NEMA 10-30P plug. You'll need a CE certified breaker with GFCI, overload protection, short circuit protection, isolation, and residual current operation. The unit weighs 985 lbs and measures 70" tall x 37.25" deep x 33.5" wide, requiring professional installation and adequate floor space.
Extension cords are not recommended by Harvest Right as it may cause issues while the machine is running.
How user-friendly is the HRC100 for daily operation?
+
Despite its commercial capacity, the HRC100 maintains user-friendly operation. Simply load your product onto the standard baking sheet trays, press start, and the machine will alert you with a beep when the process is complete. It's built on Harvest Right's proven freeze-drying technology, ensuring reliable and consistent results.
What maintenance does the HRC100 require?
+
The HRC100 includes a premier industrial vacuum pump integrated inside the unit for optimal performance and space efficiency. Regular maintenance includes cleaning the nine stainless steel trays after each use and following the pump oil change schedule. Expert technical support is available to help maintain peak performance.
What's covered under the warranty?
+
The HRC100 includes a full one-year warranty covering the freeze dryer and premier industrial vacuum pump for defective workmanship or materials. Years 2-3 provide limited warranty on the sealed refrigeration system (compressor, condenser, evaporator). Consumer handles diagnostic costs and transportation after year 1, with special provisions for Alaska, Hawaii, Canada, and Puerto Rico.
